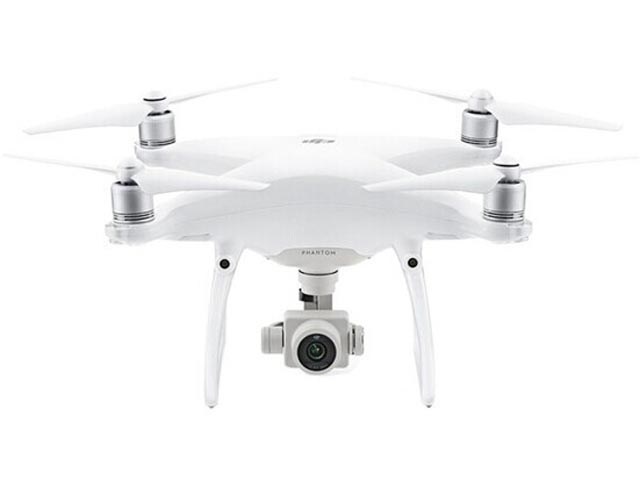

The UAE PHANTOM 4 pro camera comes with a 1-inch 20-megapixel image sensor that captures 4K / 60FPS video and takes still pictures at 14 frames per second. Titanium alloy, magnesium alloy material to use the body light and strong, with a heavier high-performance camera after the weight and PHANTOM 4 almost the same. Flightautonomy system adds rear view sensor and infrared sensor on both sides of the fuselage, so phantom 4 Pro has 5 to the environment to identify and 4 to the obstacle avoidance, higher security, flight more intelligent.
product description:
|
UAE PHANTOM 4 PRO |
|
|
product type |
Four - axis aircraft |
|
Product Positioning |
beginner level |
|
Hover accuracy |
Vertical: ± 0.1m (visual positioning normal work); ± 0.5m (GPS positioning normal work) Level: ± 0.3m (visual positioning normal work); ± 1.5m (GPS positioning normal operation) m |
|
Rotation angular velocity |
Maximum rotation angular velocity: 250 ° / s (motion mode); 150 ° / s (attitude mode) |
|
Lifting speed |
Maximum lifting speed: 6m / s (motion mode); 5m / s (positioning mode) Maximum descent speed: 4m / s (motion mode); 3m / s (positioning mode) |
|
Flight speed |
Maximum level flight speed: 72km / h (motion mode); 58km / h (attitude mode); 50km / h (positioning mode) |
|
Flying height |
Flying height Maximum flying altitude: 6000m |
|
flight duration |
About 30 minutes |
|
Wheelbase |
350mm |
|
working frequency |
2.4-2.483GHz and 5.725-5.850GHz |
|
Control distance |
FCC: 7000m; CE: 3500m (no interference, no block) m |
|
Transmit power |
2.4-2.483GHz |
|
Angle control accuracy |
Pitch: -90 ° to + 30 ° |
|
Controllable rotation range |
±0.03° |
|
Control the speed |
Pitch: 90 ° / s |
|
Lens |
FOV84 °; 8.8mm / 24mm (35mm format equivalent); aperture f / 2.8-f / 11 With auto focus (focusing distance 1m - infinity) |
|
sensor |
1 inch CMOS; effective pixels 20 million (total pixels 20.48 million) |
|
ISO range |
Video: 100-3200 (automatic); 100-6400 (manual) Photo: 100-3200 (automatic); 100-12800 (manual) |
|
Shutter speed |
Mechanical Shutter: 8-1 / 2000s Electronic shutter: 1 / 2000-1 / 8000s |
|
Photo resolution |
3: 2 aspect ratio: 5472 × 3648 4: 3 aspect ratio: 4864 × 3648 16: 9 aspect ratio: 5472 × 3078
PIV Camera size: 16: 9 aspect ratio: |
|
Video resolution |
H.265 |
|
Shooting mode |
Single shot Multiple continuous shooting (BURST): 3/5/7/10/14 sheets Auto bracketing (AEB): 3/5 sheets @ 0.7EV steps Interval: 2/3/5/7/10/15/30 / 60s |
|
file format |
Video storage maximum bit stream: 100Mbps Support file system: FAT32 (≤ 32GB); exFAT (> 32GB) Picture format: JPEG, DNG (RAW), JPEG + RAW Video format: MP4 / MOV (AVC / H.264; HEVC / H.265) |
|
Memory card type |
MicroSD card; maximum support 128GB capacity, write speed ≥ 15MB / s, transmission speed of Class10 and above or to achieve UHS-1 rating MicroSD card |
|
charger |
Voltage: 17.4V Rated power: 100W |
|
battery |
Remote control: 6000mAh lithium rechargeable battery 2S Intelligent Flight Battery (PH4-5870MAH-15.2V) Capacity: 5870mAh Voltage: 15.2V Battery type: LiPo4S Energy: 89.2Wh The overall battery weight: 468g Charging ambient temperature: -10 ℃ to 40 ℃ Maximum charge power: 100W |
|
Flight control system |
Stable system: 3-axis (pitch, roll, yaw) |
|
product weight |
Aircraft: (with battery and paddle): 1388g |
|
Applicable environment |
Aircraft: Operating temperature: 0 ° C to 40 ° C Camera: Operating temperature: 0 ° C to 40 ° C |
|
Other parameters |
Aircraft Maximum tilt angle: 42 ° (motion mode); 35 ° (attitude mode); 25 ° (positioning mode) Satellite positioning module: GPS / GLONASS dual mode Visual system Speed measurement range: flight speed ≤ 50km / h (height 2m, adequate light) Height measurement range: 0-10m Accurate hover range: 0-10m Obstacle perception range: 0.7-30m FOV: Horizontal 60 °, vertical ± 27 ° Measurement frequency: 10Hz Use of the environment: the surface is rich in texture, adequate lighting conditions (> 15lux, indoor fluorescent light normal exposure environment) Infrared sensing system Obstacle sensing range: 0.2-7m FOV: Horizontal ± 35 °, vertical ± 10 ° Measurement frequency: 10Hz Use of the environment: the surface is diffuse reflective material, and the reflectivity> 8% (such as walls, trees, people, etc.) remote control Operating current / voltage: 1.2A@7.4V Video output interface: GL300F: USB GL300E: HDMI, USB Mobile device bracket: GL300F: for tablet or mobile phone GL300E: comes with a screen (5.5 inch screen, resolution 1920 × 1080, Brightness 1000cd / m2, Android system, system memory 4GRAM + 16GROM) |
Features:
The UAE PHANTOM 4 pro camera comes with a 1-inch 20-megapixel image sensor that captures 4K / 60FPS video and takes still pictures at 14 frames per second. Titanium alloy, magnesium alloy material to use the body light and strong, with a heavier high-performance camera after the weight and PHANTOM 4 almost the same. Flightautonomy system adds rear view sensor and infrared sensor on both sides of the fuselage, so phantom 4 Pro has 5 to the environment to identify and 4 to the obstacle avoidance, higher security, flight more intelligent.
Flightautonomy system has been fully upgraded, with 5-way perception and 4-way obstacle avoidance function, to further improve the GPS environment without relying on binocular stereoscopic vision system precision hovering ability. Front, rear and bottom are equipped with binocular vision sensor, the environment detection distance of up to 30 meters, flying through any direction of binocular vision can be achieved positioning hover. The left and right side are equipped with an infrared sensor to provide safety protection in low speed lateral flight.
