product description:
10kV cable distribution box is based on years of R & D experience developed by the company to meet the needs of the market, and more secure and reliable an outdoor products. It can meet the full seal, insulation, full protection, all-weather outdoor operation conditions. The shell can be metal shell, you can also use the company's special SMC shell.

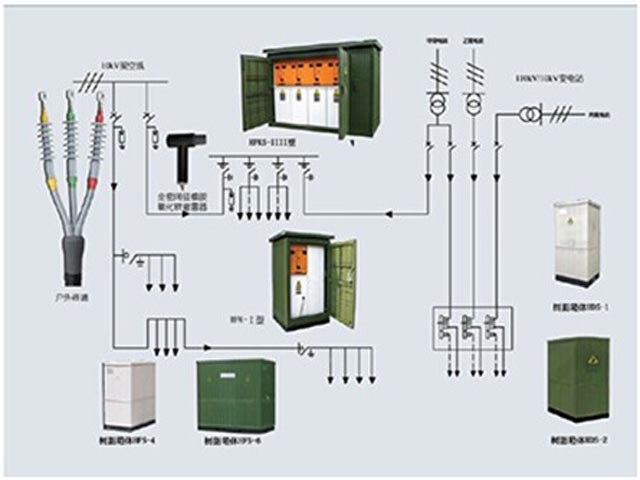

10kV cable distribution box in the distribution line has two main functions 1. Tap function 2. Transfer function
In a relatively long line, the use of cable distribution box can save customers a lot of cable costs.
Features:
HD (S) series cable docking box
1. To achieve different types of different cable cross-section of the convenience of docking
2. Can be reserved for subsequent tap expansion space
3. Waterproof, anti-pollution, anti-salt spray corrosion
4. Routine detection and maintenance for subsequent runs
5. Discard the complicated process of the middle of the cable

New cable docking box
1. You can select metal with SMC housing
2. Fully enclosed, fully insulated, fully protected
3. Access line flexible, can achieve 6 branches
4. Configuration of fully sealed silicone rubber cable plug
5. Can be allocated for the subsequent expansion and power capacity of the tap space


HFK (S) -I type with load switch splitter box
1. You can select metal with SMC housing
2. Fully enclosed, fully insulated, fully protected
3. Into the line flexible, can achieve 6-way outlet
4. Configuration of fully sealed silicone rubber cable plug
5. Without affecting the main network operating conditions, can achieve regional power failure maintenance
6. Configure the fully sealed load switch


HFK (S) -III ring cable cable distribution box
1. Fully enclosed, fully insulated, fully protected
2. Can be achieved ring network power supply
3. Easy installation, configurable mechanical program control lock
4. Without affecting the main network operating conditions, can achieve regional power failure maintenance
5. Configure the fully sealed load switch
6. The interface can be reserved for the automation of the distribution network


Distribution network automation cable distribution box
1. Fully enclosed, fully insulated, fully protected
2. Can realize telemetry, remote, remote control function
3. Install FTU can automatically find the point of failure, automatic isolation of fault points, automatic recovery of non-fault section of the power supply
4. Install the electric operating mechanism
5. Install current, voltage transformer
6. Ring-type dual power supply from the cast ring network cabinet


Features:
1. Fully enclosed, fully insulated, fully protected
2. Central power supply and dual power supply from the power supply integration, saving investment, improve power supply reliability
3. Can be achieved dual power metering, easy to use electricity management
4. Triple lock function, high anti-misuse protection
(1) Electrical operation when the electrical lock
(2). Key operation when the key is locked
(3). Load side failure when the self-locking
5. Run mode: a master and a prepared
